Nantong Shenwei Steel Wire Rope Co., Ltd. is one of the leading manufacturers and suppliers of 8x19w+8x7+fc steel-reinforced fiber core elevator wire rope in China. With abundant experience, we warmly welcome you to buy durable 8x19w+8x7+fc steel-reinforced fiber core elevator wire rope made in China here from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Overview

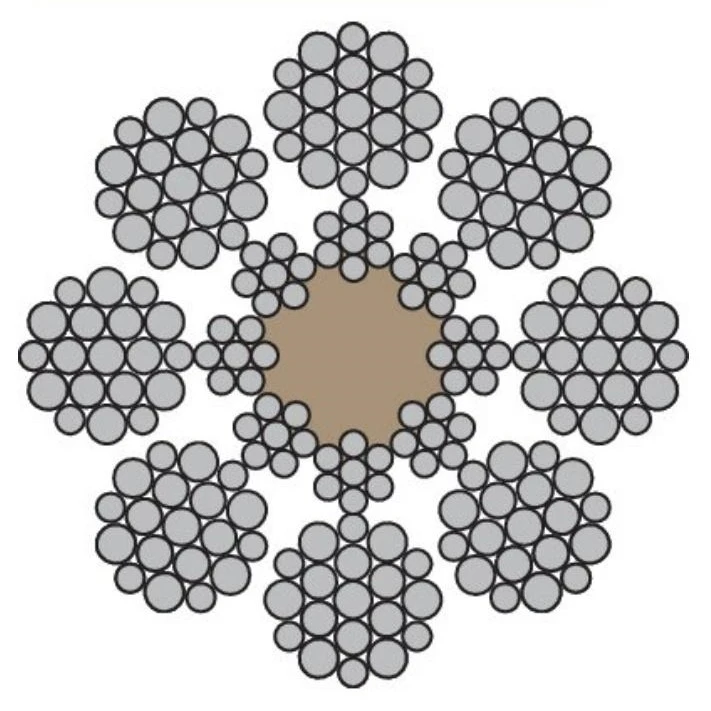

The rope core includes a steel-reinforced fiber core (8x19W+8x7+FC). In contrast to ordinary elevator ropes, it features a larger nominal cross-sectional area and therefore achieves higher breaking strength. During installation and usage, the extra fiber layer provides excellent elongation properties and effectively prevents cross-sectional deformation of the rope as it passes over traction sheaves and deflection sheaves. Consequently, this rope is primarily utilized in elevator applications where the operational service life of the rope is dictated more by bending cycles than by sheave wear.
Technical Specifications
|
Construction |
8x19 Warrington, steel-reinforced fiber core (8x19W + (8x7+FC)) |
|
Lay Direction |
Regular Lay (Right Hand / Left Hand) |
|
Technical Terms & Standards |
DIN EN 12385, ISO 4344 |
|
Load-Bearing Wires in Outer Strands |
152 Wires |
|
Tensile Grade |
1570 N/mm² |
|
Steel Wire Finish |
Bright (Blank) or Galvanized |
|
Permissible Diameter Tolerance (No Load) |
max. 3% (<10 mm), max. 2% (>10 mm) |
|
Permissible Diameter Tolerance (With Load, 10% Fmin) |
min. -1% (<=10 mm), min. -1% (>10 mm) |
Specification & Performance Data Table
|
Nominal Rope Diameter |
Calculated Mass |
Minimum Breaking Load |
|
8 |
0.258 |
40.6 |
|
9 |
0.329 |
51.8 |
|
10 |
0.403 |
63.4 |
|
11 |
0.485 |
76.8 |
|
12 |
0.569 |
90.7 |
|
13 |
0.671 |
105.0 |
|
14 |
0.782 |
124.3 |
|
15 |
0.886 |
139.9 |
|
16 |
1.016 |
160.4 |
|
19 |
1.424 |
225.6 |
|
20 |
1.572 |
250.1 |
* Non-stock material; manufactured to order. Imperial (inch) dimensions available upon request.
Key Features & Performance Advantages
✔ Small to Intermediate Bending Cycle Capacity
✔ Normal to Heavy Usage Capability
✔ Good Elongation Properties
✔ Excellent Cross-Sectional Shape Stability
✔ Higher Breaking Strength than Standard Fiber Core Ropes
Primary Applications
🔹 Elevator Traction Hoisting Systems: Ideal as traction ropes for passenger and freight lifts requiring extra flexibility and cushioning.
🔹 Low-to-Medium Rise Elevator Shafts: Provides smooth operation and reduced vibration in residential and commercial elevator installations.
🔹 Systems with Deflection Sheaves: Prevents rope distortion and deformation when navigating multiple sheaves and guide pulleys.
About Our Factory
Nantong Shenwei was established in 1994. Factory construction area of 20,000 square meters, more than 100 employees, including quality assurance and technical professionals more than 20 people. We specialize in the production of wire rope, with more than 200 sets of production equipment,including wire drawing machine, wire stranding machine, laying machine, annual output of 20,000 tons. The product range includes ungalvanized and galvanized steel wire rope, pvc coated steel wire rope and wire strands, etc. Industry standards include GB, DIN, EN, ASTM, and offer customization capabilities. Our products are known for their superior durability, high strength and best-in-class performance, making them suitable for a wide range of industries and applications.
Frequently Asked Questions (FAQ)
Q1: How does 8x19W+8x7+FC differ from standard 8x19S/W+FC fiber core ropes?
A1: The core in 8x19W+8x7+FC is reinforced with steel strands surrounding a fiber center. This hybrid core provides higher breaking load and cross-sectional shape retention while maintaining the cushioning flexibility of a fiber core.
Q2: What is your minimum order quantity (MOQ)?
A2: For standard specifications, our minimum order quantity is 5,000 metres per size. However, the minimum order quantity for steel wire ropes of different constructions may vary. Please contact us to discuss your specific requirements.
Q3: Are imperial (inch) dimensions and custom lengths available?
A3: Yes, Nantong Shenwei manufactures both metric (8mm - 20mm) and equivalent imperial size elevator wire ropes made to order.
Q4: Do you provide OEM and ODM custom services?
A4: Yes, we offer professional OEM and ODM services. We can customize the steel wire rope structures, diameters, surface treatments (such as galvanized or colored paint), tensile strengths, and packaging (such as small coils or wooden reels) according to your specific requirements.
Q5: What are your accepted payment terms?
A5: We generally accept T/T (30% deposit in advance, and the balance 70% against the copy of B/L) and L/C at sight. Other payment methods can also be negotiated for long-term partners.
