Product Details
Production Name

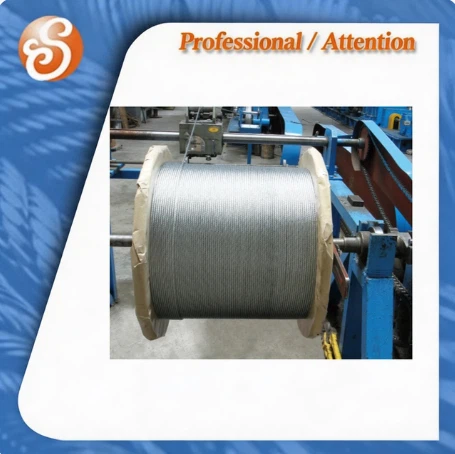

Hot Dipped Galvanized Steel Wire Rope
Construction
1X7,1X19,6x7,6x19,6x19S,6x37,6x36(ws)
Length
1500/1000/500/200m
Lay
R.H.R.L/L.H.R.L
Core
Steel Core/Fiber Core
Nominal T/S
1570/1770N/1960N/mm2
Special Use
Free Cutting Steel
Surface Treatment
Highly Polished
Packaging Details
Pallet, or as Requirement
Steel Grade
High Carbon Steel
Packing
Wooden Reel/Coil/Roll
Usage
Construction Structure
Feature
High Strength Steel Wire
Transport Package
by Sea in Container
Origin
China
HS Code
7312100000
Production Capacity
12000 Meter/Meters Per Year
Technical data

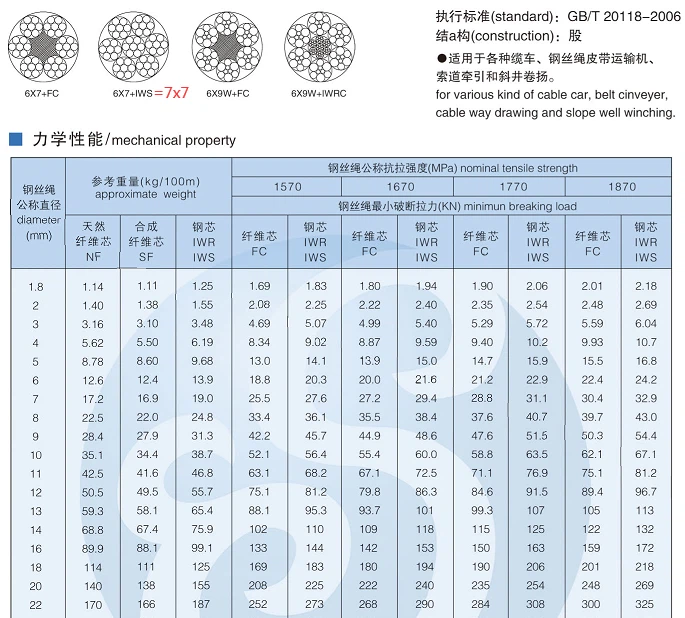

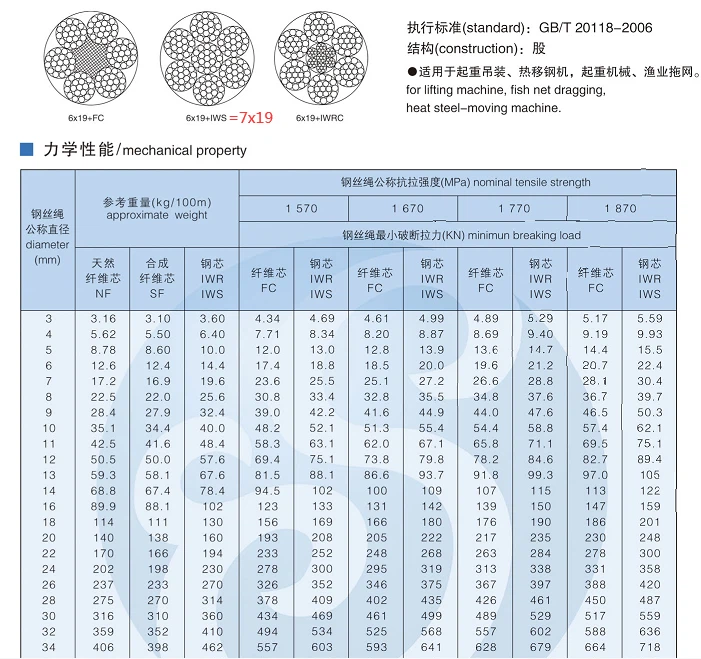

Mechanical property
Minimum mass of zinc coating in different standard

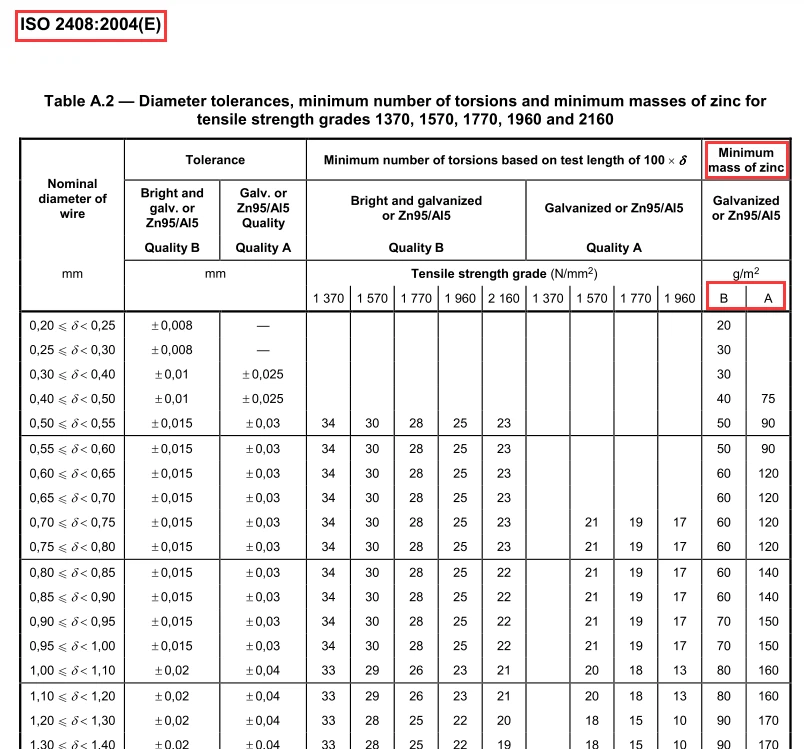

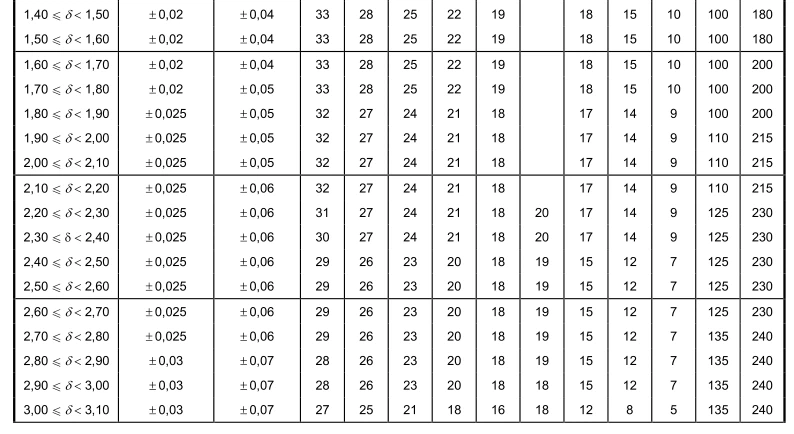

ISO2408-2004:
GB/T 20118-2006:
BS EN 10264-2:2012:
API SPEC 9A:
Product Description
The production process of hot dipped galvanized steel wire rope is to immerse the wire which has been derusted into the molten zinc solution to coat the surface with zinc. Compared with the electric one, it is more antirust and corrosion-resistant and has thicker zinc-coat which all lead to a longer service life.
For example,6x19+FC-12.7mm(nominal diameter of wire is 0.81mm),when it is electric galvanized ,the thickness of the zinc-coat is only 10-15g/mm2. However when it is a hot dipped one, the minimum mass of zinc coating will vary by different standards as below:
In ISO2408-2004, the minimum mass of zinc coating is 60g/mm2 in Class B.
In GB/T 20118-2006: it's 66g/mm2 in Class B.
In BS EN 10264-2:2012: it's 75g/mm2 in Class B.
In API SPEC 9A: it's 60g/mm2 in Class B.
Hot dipped galvanized steel wire ropes are made from carbon steel as the raw material. Usually, high-carbon steels such as 60#, 70#, and 80% are used, with a carbon content ranging from 0.6% to 0.8%. Through the cold drawing process, their strength is enhanced, and the tensile strength can reach 1570N/mm2 to 2160N/mm2. In some cases, elements like manganese and silicon are added to improve toughness, which is used in extreme environments such as mines and ships.
Production Process
Package and loading
The packaging can be changed flexibly according to customer's request.
How to order
Honor
Production Usage
Our products can be used in many ways, including construction, cranes, elevators, lifting and excavators.
The steel wire is a metallic, cylindrical, and flexible strand that is commonly used to conduct electricity. With it, you can form a wire rope which has even more uses in both private and public sector industries. Some applications you might not even expect. Thanks to this, the uses of steel wire expand greatly.
The applications of steel wire range far and wide. It is used in most industries because having a rope that's more durable than normal fibrous ropes is an incredible advantage. It becomes the better option in terms of safety, longevity, and of course, versatility. And as you can expect, it does the jobs of normal ropes but better.
Production Benifits
Good anti-corrosion performance
The galvanized steel wire rope is coated with a layer of zinc on its surface, forming a protective layer with excellent anti-corrosion properties. This can protect the surface of the steel wire rope from corrosion and oxidation. In humid, acidic, alkaline and other harsh environments, the surface of the steel wire rope always remains in good condition, thereby significantly extending the service life of the steel wire rope.
Furthermore, the corrosion resistance of galvanized steel wire ropes is determined by the inherent properties of zinc. Zinc has excellent corrosion resistance, and even if there are scratches, abrasions or other damages on the surface, it can automatically repair itself and maintain its protective effect. Therefore, the corrosion resistance of galvanized steel wire ropes is superior to that of traditional steel wire ropes, and is widely used in various important fields.
High strength and wear resistance
The galvanized steel wire rope has a zinc coating on its surface. The zinc layer itself has high hardness and wear resistance, so the hardness and wear resistance of the galvanized steel wire have also been significantly improved. It has higher strength and wear resistance than ordinary steel wires.
In particular, in some high-strength and high-demanding situations, choosing galvanized steel wire rope can greatly enhance the mechanical performance and durability of the product. It is widely used in fields such as automobiles, mechanical manufacturing, electronic instruments, and power industry.
Clean appearance
The galvanized steel wire rope has a smooth surface and bright color, which has certain decorative and aesthetic properties, and can improve the appearance quality and grade of the product. In addition, the surface of the galvanized steel wire rope can also undergo secondary processing, such as painting or coating, to give it a more diverse appearance effect.
Therefore, in the fields of construction and furniture, galvanized steel wire rope has also been widely applied and has become one of the important materials for improving the environment and enhancing the quality of life.
Appropriate price
The market price of galvanized steel wire ropes is relatively moderate compared to other high-strength and corrosion-resistant materials. Therefore, it has been widely used by a large number of users. In addition, galvanized steel wire ropes also have the advantages of being easy to use, low maintenance cost, and high production efficiency, which provide very important support for their wide application.

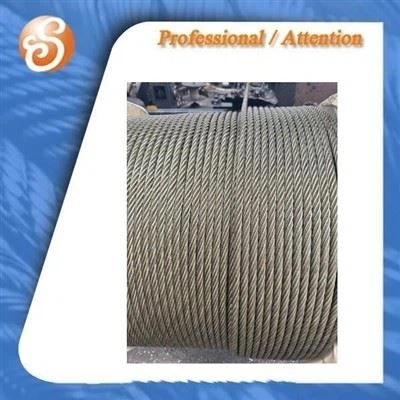

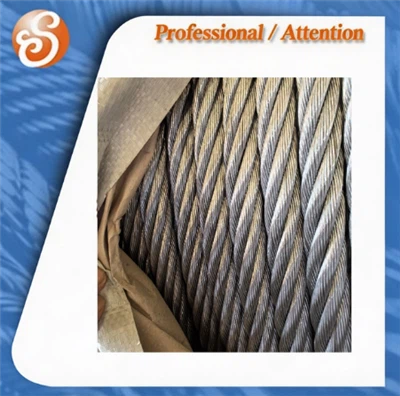

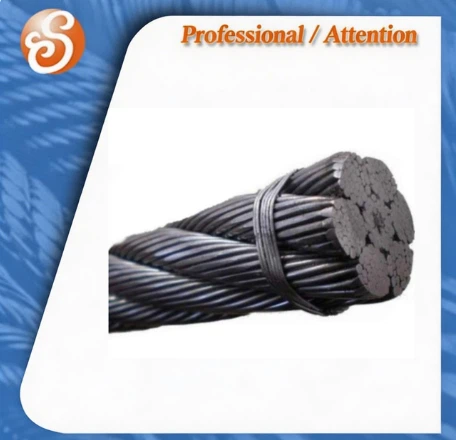

Product detail photos
Quality You Can See!
FAQ
Q: Will your galvanized steel wire ropes be oiled?
A: Under normal circumstances, our galvanized steel wire ropes are oiled, which can reduce friction and extend service life. If you have any special oiling requirements, you can contact us directly.
Q: What are the precautions for using galvanized steel wire ropes?
A: Avoid contact with acids/bases: The zinc layer is prone to chemical corrosion.
Regular inspection: After long-term use, the wear of the galvanized layer will reduce its protective effect.
Q: Will different times have an impact on your production capacity?
A: Yes, during the summer due to the high temperature, our workers cannot work under such extreme conditions, and the machines cannot be forced to operate either. As a result, the production capacity will decrease. However, the delivery date stipulated in the contract will definitely be guaranteed. We will deliver the goods as per the contract terms on schedule. At the same time, confirming the order as soon as possible is also a good method.
Q: How do you usually ship the goods?
A: If it's a full container (20-25 tons), it is generally shipped from Nantong Port. If it's a partial container (less than 15 tons), it is generally shipped from Shanghai Port. If there are any special requirements, we can also negotiate to try to meet your needs.
